Akubela Smart Dimming Panel Model TS-K(WZ), powered by ZigBee 3.0, supports AC operating voltage from 100 to 240V, enables 0-100% smooth dimming through rotary knob with touch pressure, ideal for controlling lighting with smart home systems or BelaHome panel
Hurry up to order the product and get a discount of up to 30%
Sale_coupon_15
100 in stock
100 in stock
Pick up from Saudi AV Tech warehouses Same day delivery
Free
Express delivery Products will be delivered to the location specified by the customer.
3 working days
Free
Express delivery by DHL DHL delivers the products to the specified location.
3 working days
My trials
2-year warranty More details
Return within 30 days More details
Payment Methods:

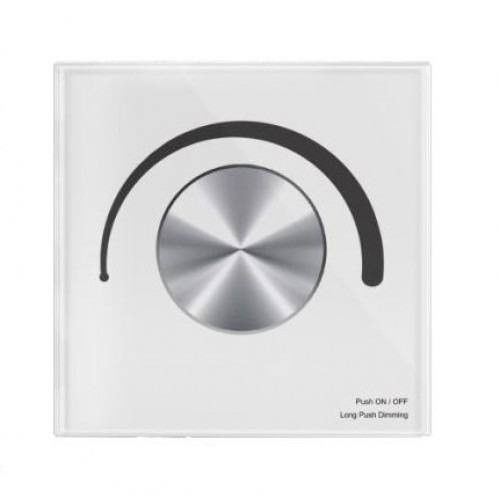

The Akubela ZigBee Triac Dimmer Panel TS-K(WZ) smart dimming panel combines luxurious design with advanced performance in home lighting control. This panel features a high-quality glass surface with a metal rotating handle that allows for smooth, level adjustment of light across 256 degrees of dimming from 0% to 100% flicker-free.
The panel supports the ZigBee 3.0 wireless control protocol, with two dimming modes: leading-edge and trailing-edge for comprehensive compatibility with various types of LED bulbs and dimming-enabled electrical appliances.
The panel features a 3-second fade transition, ensuring built-in overheating and overload protection with automatic restoration of device performance when a problem occurs.
The panel operates on a wide voltage range (AC 100-240V) with a maximum current of up to 1.5A, and a rated dimming power between 150W to 360W depending on the load type, making it suitable for small and medium home lighting control.
| Specification | Details |
|---|---|
| Model | TS-K(WZ) |
| Surface | Resistant glass, metal swivel handle |
| Communication | ZigBee 3.0 |
| Input | AC 100 ~ 240 V |
| Output | AC 100 ~ 240 V |
| Input | 1.5 Amps |
| Output | 1.5 Amps |
| Output | 150~360W |
| Dimming | 256 levels of smooth dimming from 0% to 100% |
| Dimming Modes | Leading-edge and Trailing-edge |
| protection | Overheating and overload protection with automatic recovery |
| Operating | -10 to 40 |
| Operating | 0% to 95% RH (non-condensing) |
| Protection Level | IP20 |
| Unit | 43 × 39.2 × 22.3 mm |
| Installation Dimensions (LxWxH) | 86 × 86 × 48 mm |
Akubela ZigBee Triac Dimmer Panel TS-K(WZ) – Seamless One-Tap Lighting Control
Protocol and Smart
ConnectivityIt supports ZigBee 3.0 for seamless integration with Akubela smart home systems (such as HyPanel) and the BelaHome app.
Operating Voltage and I/O
It operates with an AC voltage of 100-240V, AC output of the same range.
The output current allowable is about 1.5 amps in some versions, and the capacity depends on the electrical load of the light or the associated device.
Dimming
functionGradient dizziness from 0 to 100%, with an estimated number of 256 hidden levels for precise flicker-free control.
It also supports adjusting the minimum brightness to adjust the dimmer so that the light is not too dim to be seen when turned on.
Manual and Disc
ControlThe dimmer is equipped with a rotary dial that can be rotated for light or lower, as well as the ability to press the dial (rotary knob press) to turn on or off.
Compatibility and additional
featuresIntegrated with apps like Smart Life/Tuya in some versions, supports “delay on/off” and some smart functions depending on the setting.
Overload/overheat protection may be present in some versions, with the ability to handle resistive loads (incandescent, halogen) and dimmable triac phase-cut LEDs.
Installation and Expected
ResourcesMounted in a regular wall junction box with EU box dimensions, a sleek front glass panel is often available in white or black colors.
The usual operating environment includes temperatures suitable for home delivery, and normal humidity, but accurate information on temperature and humidity range is not detailed in all sources.
Why Choose TS-K(WZ) from Akubela?
Precise dimmer control from 0-100% with a natural, smooth texture.
It supports conventional electric load and Triac-certified LEDs.
The sophisticated front glass design and turntable make use sleek and easy.
Integrated with smart home systems via ZigBee – suitable for those who want to sync with other devices.
Minimal brightness adjustment options and delay and stop features that add convenience to use.
