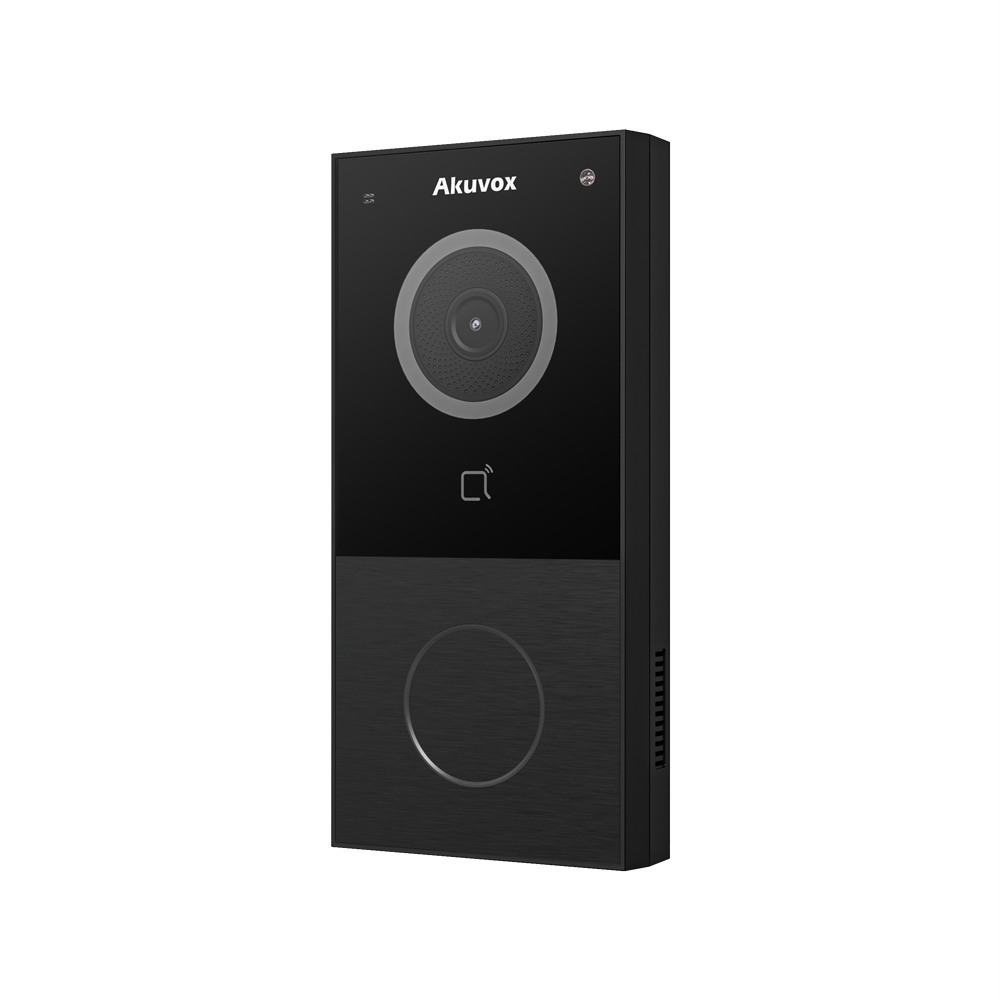

Acufox E12W SIP Video Door Phone E12W with 2MP Camera, Single Call Button, Light Sensor, Wi-Fi and BLE Connectivity, Single Relay Output

The Akuvox E12W is a state-of-the-art SIP video doorphone designed to provide smart, highly efficient security solutions with ease of installation and use, suitable for small and medium-sized residential and commercial buildings. The device combines 2MP image quality with advanced communication capabilities, including support for wireless connectivity (Wi-Fi and Bluetooth Low Energy BLE), providing great installation flexibility without the need for additional network cabling.

Main features:

• 2MP Camera : Provides a clear image with a wide viewing angle to cover the door area, suitable for monitoring and identifying visitors.

• One Call Button : Allows the visitor to easily and quickly start a call with the responsible party.

• Light Sensor : Automatically adjusts the screen and camera brightness based on the ambient light level, to improve image clarity in different lighting conditions.

• RF Card Reader : Supports 13.56 MHz and 125 kHz frequencies with NFC technology, enabling easy and secure access methods using smart cards.

• Wi-Fi and Bluetooth Low Energy (BLE) wireless connectivity : Allows the device to connect to flexible networks without the need for an Ethernet cable, making it easy to install in places where wiring is difficult.

• IP65 Protection Rating : Water and dust resistant, making it suitable for use in a variety of outdoor environments.

• One Output Relay : To control the opening of doors or activate other security systems as needed.

• SIP support : Allows the device to be easily integrated into modern network communications systems, with broad compatibility with enterprise communications platforms.

• Two-way audio with echo cancellation technology : To ensure clear audio communication between the visitor and the recipient without distortion or interference.

• Rugged, weather- and vandal-resistant construction : Robust design ensures continued operation in harsh environmental conditions.

Typical uses:

• Access control systems for residential buildings and small and medium-sized commercial complexes.

• Locations that prefer wireless installation to reduce network cables while maintaining high quality audio and video.

• Outdoor environments require water and dust resistant devices with a high level of security.

Akuvox E12W – Smart and technological security officer for all entrances

Compact and durable IP65 body:

Slim, waterproof design with stylish appearance, ideal for home or office doors.

2MP wide-angle camera with automatic night light:

Wide coverage up to 123° horizontally and 69° vertically, equipped with LED lights and automatic mounts for visibility in the dark.

One illuminated contact button + RFID reader (13.56 MHz) and NFC:

For quick audio/video activation, with card/NFC support for contactless access.

Advanced wireless connectivity: Wi-Fi and Bluetooth BLE:

Allows flexible installation without the need for a network cable, with support for phones or the SmartPlus app for wireless access.

Two-way audio and advanced voice protection:

Supports SIP (v1/v2) protocols, G.711 and G.722 codecs, echo cancellation technology, and Comfort Noise, ensuring clear voice communication.

Relay outputs for controlling locks:

You can open the door remotely via a built-in relay that can be controlled via DTMF or phone app.

Diverse operating flexibility:

Supports PoE (IEEE802.3af) or power via a 12V DC adapter. Connects wired or wirelessly as needed.

Seamless integration and advanced management technologies:

Supports ONVIF for streaming, web management, auto-provisioning, and access log export, for end-to-end enterprise integration.

Why choose Akuvox E12W?

• Quick, wire-free network installation thanks to Wi-Fi and PoE.

• Multi-way smart control: button, card, phone, and remote via APP.

• Excellent video and audio quality even in low light.

• Reliable in outdoor environments for maintaining performance.

• Full integration with popular SIP and ONVIF systems.
