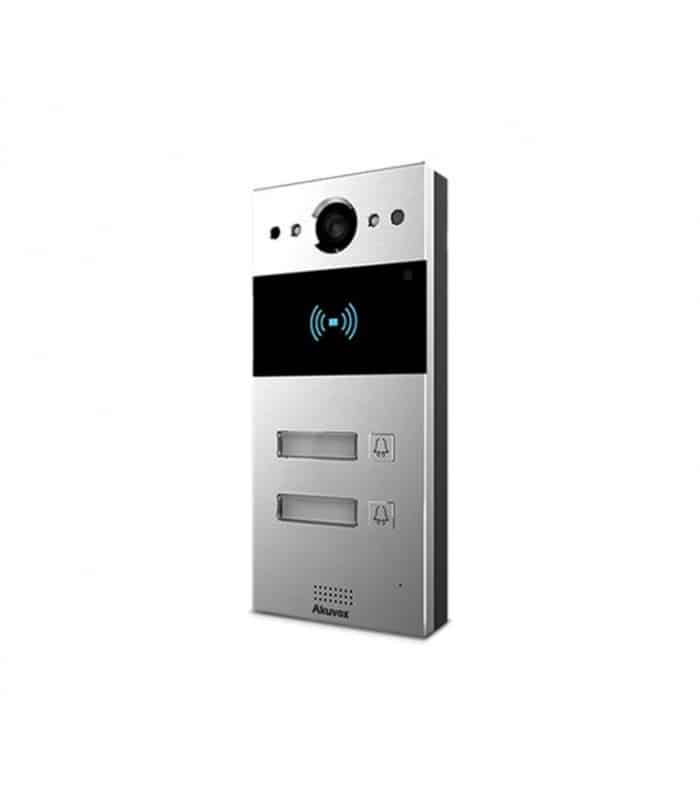

The Ecofox R20BX2 is a SIP video intercom with a 2MP camera, two call buttons, an RFID and NFC card reader, with IP65 resistance and PoE technology for easy operation

The EcoFocus R20BX2 is a sophisticated SIP video intercom device to provide two-way audio and video communication over IP networks quickly and with high quality. The device features a 2MP camera with a 110° horizontal and 58° vertical wide-angle lens, with support for auto lighting and infrared for night vision. The device has two call buttons with a nameplate for each button, as well as a 13.56MHz RFID card reader with NFC and 125kHz for easy contactless entry. The device supports Wiegand and RS485 ports and provides relay ports to control the opening of doors and associated devices. The device has an IP65 waterproof and dustproof rating and is powered by Power Over Ethernet (PoE) technology for easy installation and operation, with a shock-resistant aluminum alloy front body. The device is compatible with SIP and ONVIF protocols for seamless integration with phone and video surveillance systems.

Key Specifications Features:
A 2MP camera with a wide viewing angle (approx. 110° horizontal / 58° vertical) to ensure clear coverage of the area in front of the unit.
Aluminum alloy façade body, dust and water resistant to IP65 standard, and operates in a temperature range of approximately -30°C to +60°C.
Support feed-in over Ethernet (PoE IEEE 802.3af) or 12V DC alternate feeding, providing flexibility in installations.
Design with two dedicated call buttons with a nameplate, making it suitable for entrances with two or more units.
RF card reader with 13.56 MHz and 125 kHz frequencies, with NFC capabilities, enabling intelligent control and entry system.
Integrated network interface, supports SIP (RFC2543/RFC3261) protocol for voice and video communication over the network, and ONVIF compatibility for integration with video surveillance systems.
Relay I/O (2 exit relays, 2 inputs) as well as Wiegand and RS-485 ports for access control or exterior doors.
Flexible installation: It can be mounted surface or flush-mounted within a wall or on a surface, depending on the situation.

Why Choose Akuvox R20BX2?
It provides an all-in-one solution that combines video + audio + intelligent access control into a single unit, reducing the need for multiple devices.
The design is resistant to weather and harsh environmental conditions, making it suitable for outdoor installation in the entrances of buildings, villas or businesses.
The flexibility of installations and power (PoE or DC feeding) make installation easier and lower costs.
Robust network integration with communications and surveillance systems, enabling you to connect with smart doorbell systems, applications, or security systems.
Suitable for mixed-use locations: apartments, villas, office buildings, multi-family units, even industrial exterior gates.
