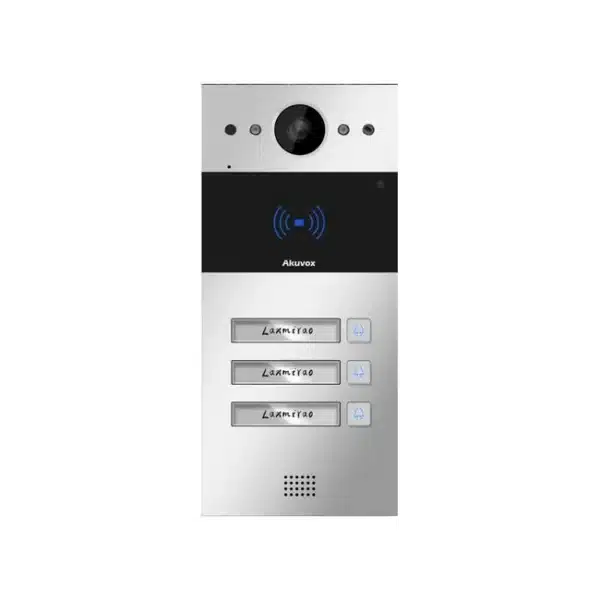

Ecofocus R20BX3 is a waterproof SIP video intercom with 2MP camera, 3 call buttons, RFID card reader with NFC, IP65 rating with PoE support

The Ecofox R20BX3 is a sophisticated SIP video intercom that provides two-way audio and video communication over IP networks, suitable for outdoor use in homes, villas, and residential complexes.

The device features a 2MP camera with a wide lens with a viewing angle of 110° horizontally and 58° vertically, equipped with a light sensor and an infrared sensor for high-quality night vision.

The Acovex R20BX3 supports 13.56MHz (NFC) and 125kHz RFID card reader (with NFC) and 125kHz for contactless access.

Equipped with an IP65 waterproof and dust resistant rating, powered by Power Over Ethernet (PoE) technology for easy installation and operation, the Ecofocus R20BX3 has Wiegand and RS485 ports, as well as relay outputs to control door opening or associated systems with support for SIP and ONVIF protocols for easy integration with phone and video surveillance systems.

Key Specifications and Advantages of Aquafox R20BX3

• The Ecofox R20BX3 aluminum alloy façade is IP65 dust and water resistant, making it usable in outdoor environments.
• 2MP camera, with wide viewing angles of approximately 110° horizontally and 58° vertical to cover wide angles clearly.
• Three dedicated call buttons with a nameplate (can be customized) making the device suitable for buildings with three residential or office units.
• Built-in 13.56 MHz and 125 kHz smart card reader (RFID/NFC), allowing access control without the need for a voice-only connection.
• Support feed-in over Ethernet (PoE – IEEE802.3af) or alternative feed (12V DC) for easier installation and reduce cables.
• The Ecofocus R20BX3 supports SIP (RFC2543/3261) voice and video network protocols for reliable communication with PBX systems, and supports ONVIF for integration with video surveillance systems.
• Two (2) relay ports and (2) entrances to control doors, locks or accompanying security systems.
• Flexible installation: Can be installed flush or surface with surfaces depending on the interior/exterior design.

Why choose Ecofox R20BX3?

• Combines clear vision + intelligent access control + multi-button design into a single device, reducing the need for separate devices and facilitating the management of multi-unit buildings.
• Its durability and resistance to weather and outdoor conditions make it suitable for use in difficult and open locations.
• Its network integration with SIP and ONVIF systems facilitates integration with existing infrastructure and provides flexibility in installation and scaling.
• The modern design of the Aquafox R20BX3 and sleek interface give a professional image of the building or facility.

Ideal Uses for Aquafox R20BX3

• Entrance gates for residential buildings with three units/apartments.
• Entry units for small to medium office or commercial buildings.
• Outdoor entry points need video and audio intercom + smart access control (e.g. flashlight entrances or backyards).
• Places that require an access card reader with direct audio and video connectivity.
