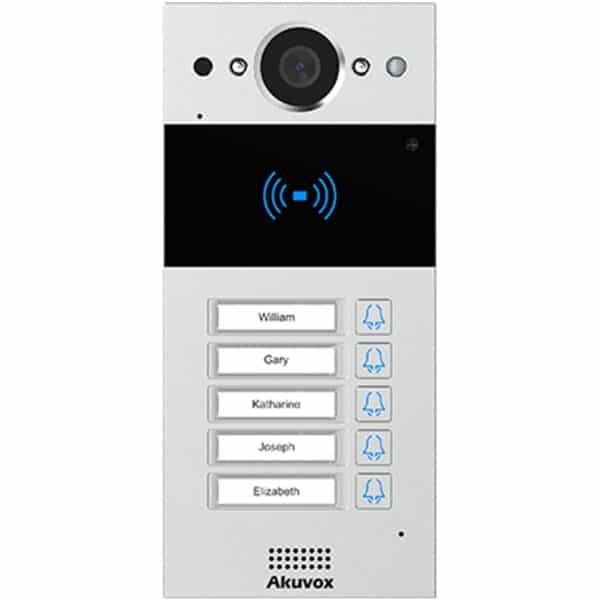

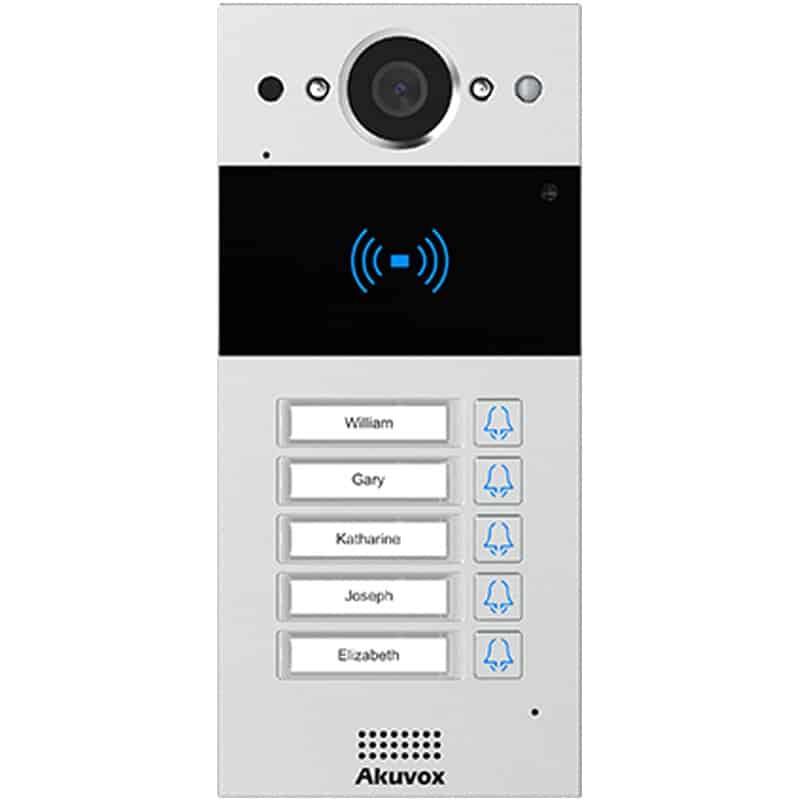

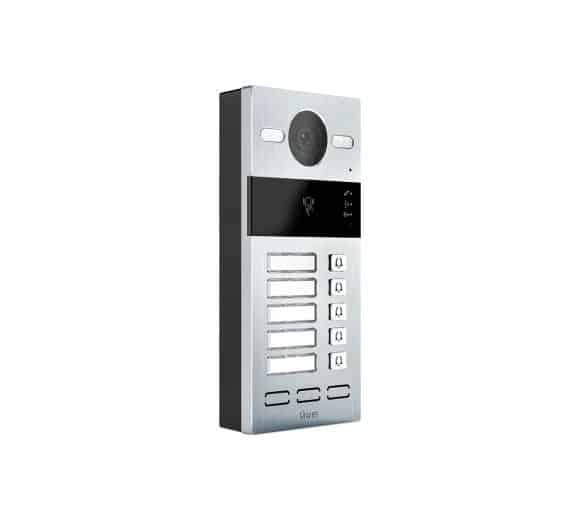

Aquafox R20BX5 is a SIP video intercom with 2MP camera, 5 call buttons, RFID card reader with NFC, IP65 standard with PoE support for easy installation

The Acofox R20BX5 is a cutting-edge SIP video intercom that delivers high-quality performance with advanced audio and visual access control technology. The device has a 2MP camera with a wide-angle view of 110° horizontally and 58° vertically, with support for auto lighting and IR for high night vision.

The device supports 5 call buttons with customizable nameplates for each button, and has an RFID card reader with frequencies of 13.56 MHz and 125 kHz, with NFC support for contactless access using smartphones.

The Ecofocus R20BX5 is IP65 water and dust resistant which makes it suitable for outdoor use, and supports Power Over Ethernet (PoE) technology for easy installation and operation. Includes Wiegand and RS485 ports as well as Relay ports to control door opening or linked devices, and is compatible with SIP and ONVIF protocols for seamless integration with phone and surveillance systems.

Key Specifications and Features of Aquafox R20BX5

• The front body of the Aquafox R20BX5 is made of aluminum alloy, a durable design that is dust and water resistant with an IP65 standard, making it suitable for outdoor installation in difficult conditions.
• Approx. 2MP camera, supports wide viewing at angles of about 110° horizontally and 58° vertically, with auto lighting and infrared light for good low-light shooting.
• Support for 5 dedicated call buttons (with nameplate) — Suitable for buildings with up to five dedicated units or entrances.
• RFID card reader supports 13.56 MHz (NFC) and 125 kHz frequencies, providing intelligent input control without the need for just a voice call.
• Flexible feeding: Supports PoE (IEEE802.3af) feed as well as 12V DC input when not using PoE
• The Ecofocus R20BX5 offers multiple digital connections: RJ45 -10/100 Mbps, Wiegand port, RS-485, 2 (and sometimes 2 inputs) relay outputs for controlling doors or locks.
• Support for important network protocols: SIP v1/v2 (RFC2543/3261) and ONVIF protocol for integration with video surveillance systems.

Why Choose Ecofox R20BX5

• It combines high-quality video + two-way audio + intelligent access control in one device, reducing the need for separate devices and facilitating the management of multi-unit buildings.
• The design of the Ecofox R20BX5 is weather- and shock-resistant and provides high durability for outdoor use, so it is suitable for gates and entrances that need reliable performance.
• Networking integration with communications and surveillance systems makes the device a flexible choice for modern projects, with the possibility of expansion and modernization later.
• Smart card reader and NFC capabilities add an extra level of security and an enhanced user experience for building residents or employees.

Ideal uses for the Aquafox R20BX5

• Gate entrances or residential or commercial buildings with up to five communication units.
• External entry units that wish to use a video intercom + smart card reader.
• Parking entrances, back gates, or any location that requires a professional video entry and surveillance system.
• Projects upgrading traditional systems to modern IP systems that support VoIP and SIP.
