Akubela HyPanel Lux RT61-R2-EU is a high-end 2.1-inch Android 10 screen size smart panel that packs a full range of functions: smart intercom, ZigBee gateway, home control, built-in speaker and microphone, and various sensors — all in a luxurious design with a metal circular button and sleek glass buttons. Supports cross-communication Dual-band Wi-Fi, Bluetooth 4.2, ZigBee 3.0, Ethernet , and is an ideal choice for advanced control of smart home systems
Hurry up to order the product and get a discount of up to 30%
Sale_coupon_15
Pick up from Saudi AV Tech warehouses Same day delivery
Free
Express delivery Products will be delivered to the location specified by the customer.
3 working days
Free
Express delivery by DHL DHL delivers the products to the specified location.
3 working days
My trials
2-year warranty More details
Return within 30 days More details
Payment Methods:

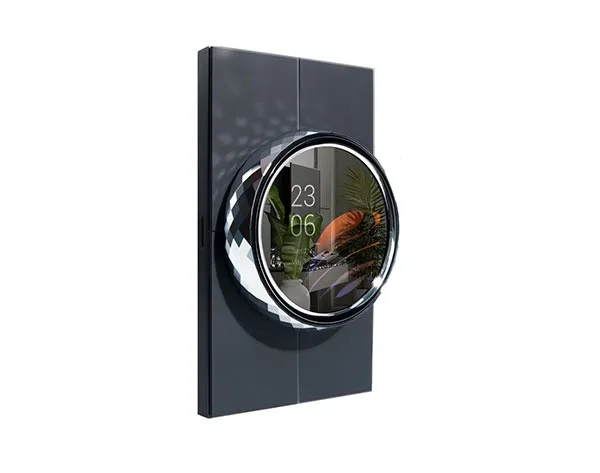

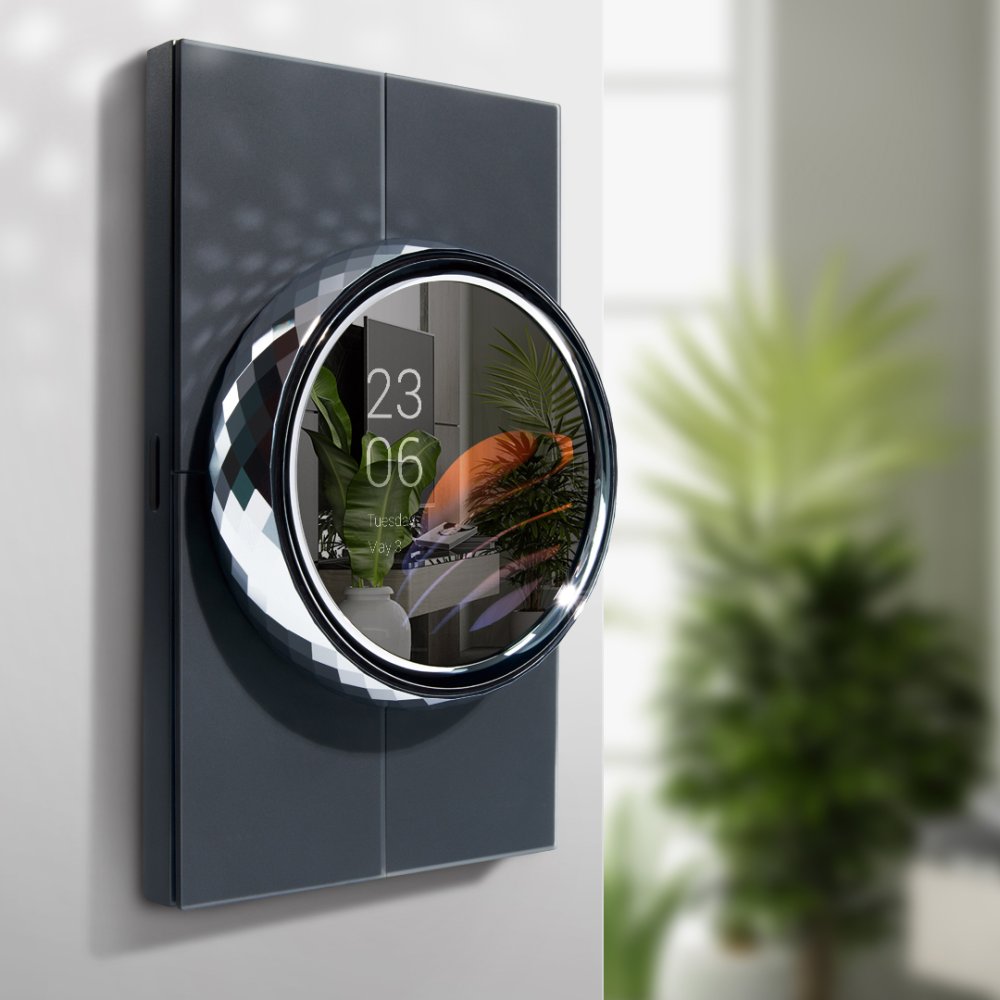

Akubela HyPanel Lux RT61 is a smart control panel designed for smart homes and buildings, featuring a 2.1-inch 480-× 480p micro-touch screen with four glass buttons and a metal rotary wheel that provides various control modes to suit all users.
The device runs on Android 10 and features a sleek design with a frame made of V0 fire-resistant plastic, and features a multi-color RGB light ring that meets user preferences and enhances visual interaction.
The HyPanel Lux RT61 supports dual-band Wi-Fi (2.4 and 5 GHz), Bluetooth 4.2, and a ZigBee 3.0 gateway that enables connectivity to a wide range of smart home devices. It has an RJ45 Ethernet port with speeds of 10/100 Mbps.
It is equipped with several smart sensors such as a proximity sensor (30-60 cm), low light sensor, a temperature sensor (±1°C from -10°C to 55°C), humidity sensor (±5% from 10% to 90% RH without condensing), and a 3-axis gravity sensor.
The on/off device includes a 2-gang switch with a dry contact to control lights or other devices, podendo push up to 1200 watts in total (800 watts resistive / 400 watts LED/CFL).
It has a dual microphone with a sensitivity of up to -42dBV, and an 8 ohm/1.5-watt speaker, enabling clear voice communication and voice transmission functions for the intercom.
| Specification | Details |
|---|---|
| Display | 2.1-inch multi-touch, 480×480p resolution |
| Operating system | Android 10 |
| Buttons and interface | 4 Glass Buttons + Metal Swivel Wheel with RGB Ring |
| Networking Connectivity | Wi-Fi 2.4/5 GHz, Bluetooth 4.2, ZigBee 3.0, RJ45 Ethernet |
| Sensors | Proximity (30-60 cm), Low light, Heat ±1°C, Humidity ±5%, Three-axis gravity sensor |
| Control Outputs | 2-gang switch, total power 1200W |
| Sound | Two microphones, 8Ω / 1.5W amplifier |
| Installation | Built-in wall mounting to EU/UK standard |
| Materials | V0 Fire Resistant Plastic, Glass Buttons, Metal Swivel Wheel |
| Dimensions Weight | 86.5 × 158.5 × 68.2 mm, 1 kg |
Design Order
-Powered by Android 10 HyPanel Lux RT61-R2-EU, with 1 GB RAM and 8 GB ROM, in a fire-resistant plastic (V0 PC) chassis decorated with AG glass and sleek metal buttons.
2.1″ touchscreen with a resolution of 480×480 pixels and a brightness of -210 cd/m², supports advanced control style and elegant operation.
Connectivity Networking
Supports Wi-Fi (2.4/5 GHz), Bluetooth 4.2, ZigBee 3.0 and Ethernet RJ45 connectivity at 10/100 Mbps — enabling perfect integration with your smart home environment.
Integrated
Intelligent functions the smart intercom interface, ZigBee gateway, and smart home controller are integrated with a single module, and can interact via a circular button and are easy to use with multiple touches.
Advanced
sensorsEquipped with proximity sensor (30–60 cm), light, heat (±1°C, operating range -10°C to 55°C), humidity (±5%, 10–90% RH), and three-axis gravity sensor.
Electrical
ControlIt has a dual (2-gang) Relay output with a total power of up to 1200 W (800 W per resistive channel, or 400 W per channel for LED/CFL lighting).
Voice and Communication
Functions Equipped with two built-in microphones (Dual microphones) and one speaker, to support intercom functions and internal voice notification.
Installation and operating
conditions It can be installed in the Flush Mount method using the standard EU/UK case, and operates in an environment (humidity 10–90% RH, operating temperature –10°C to 55°C, storage up to –30°C to 70°C).
DesignAuto ControlInstallation
| Reason | Clarification |
|---|---|
| Luxury | Metal round button and glass buttons in a sleek and advanced panel. |
| Integrated Functions | Smart Intercom, ZigBee Gateway, Home Auto Control in One Device. |
| Diverse Communication | Wi-Fi, Bluetooth, ZigBee and Ethernet support for seamless integration. |
| Intelligent | Built-in environmental sensors and dedicated Relay employee. |
| Professional | The design of the Flush Mount is suitable for modern décor. |
Overview | Model | RT61 |
|---|---|
| Display | 2.1 inch multi-touch, 480×480p resolution |
| Manufacturer | Akubela |
| System OS | Android 10 |
| Connection Protocol | Bluetooth 4.2, Wi-Fi, ZigBee 3.0 |
| Dimensions | |
| Operating Temperature |
Processor | Model | RT61 |
|---|---|
| Display | 2.1 inch multi-touch, 480×480p resolution |
| Manufacturer | Akubela |
| System OS | Android 10 |
| Connection Protocol | Bluetooth 4.2, Wi-Fi, ZigBee 3.0 |
| Dimensions | |
| Operating Temperature |
