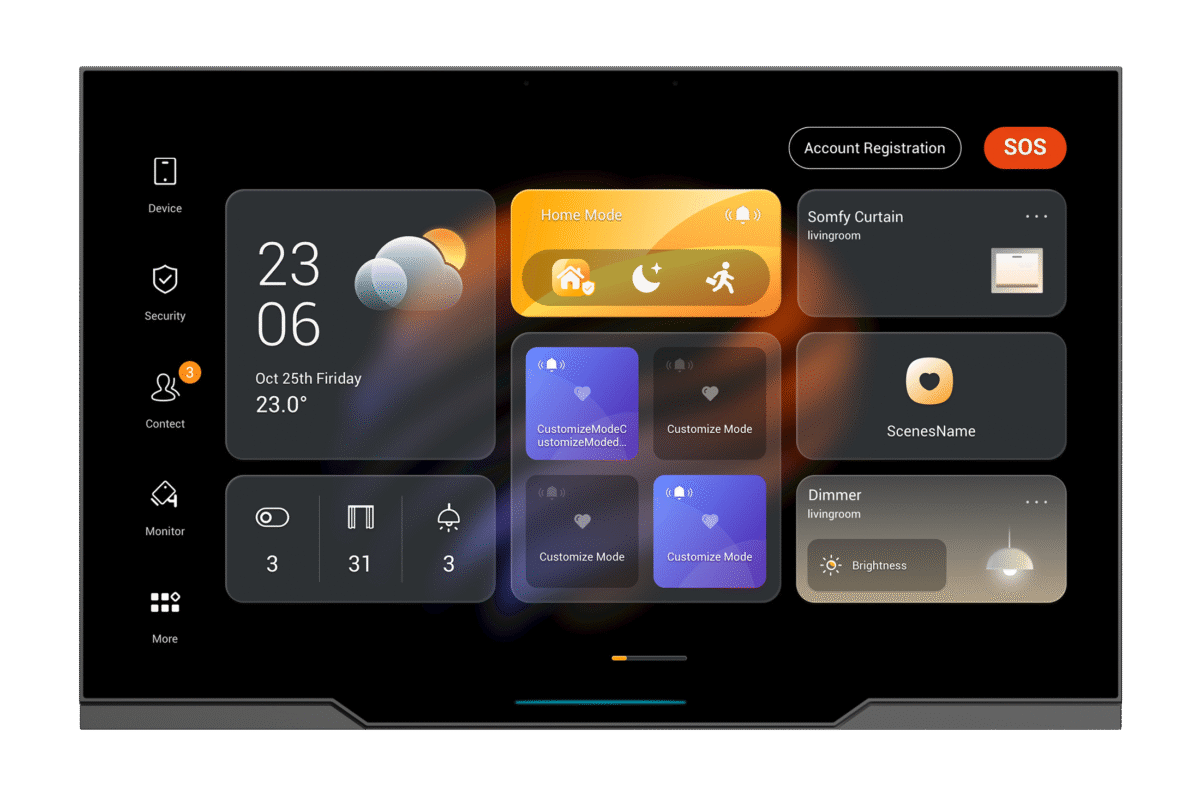

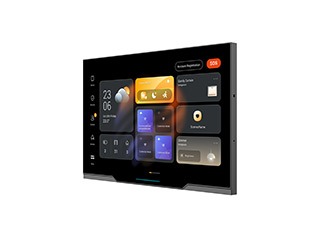

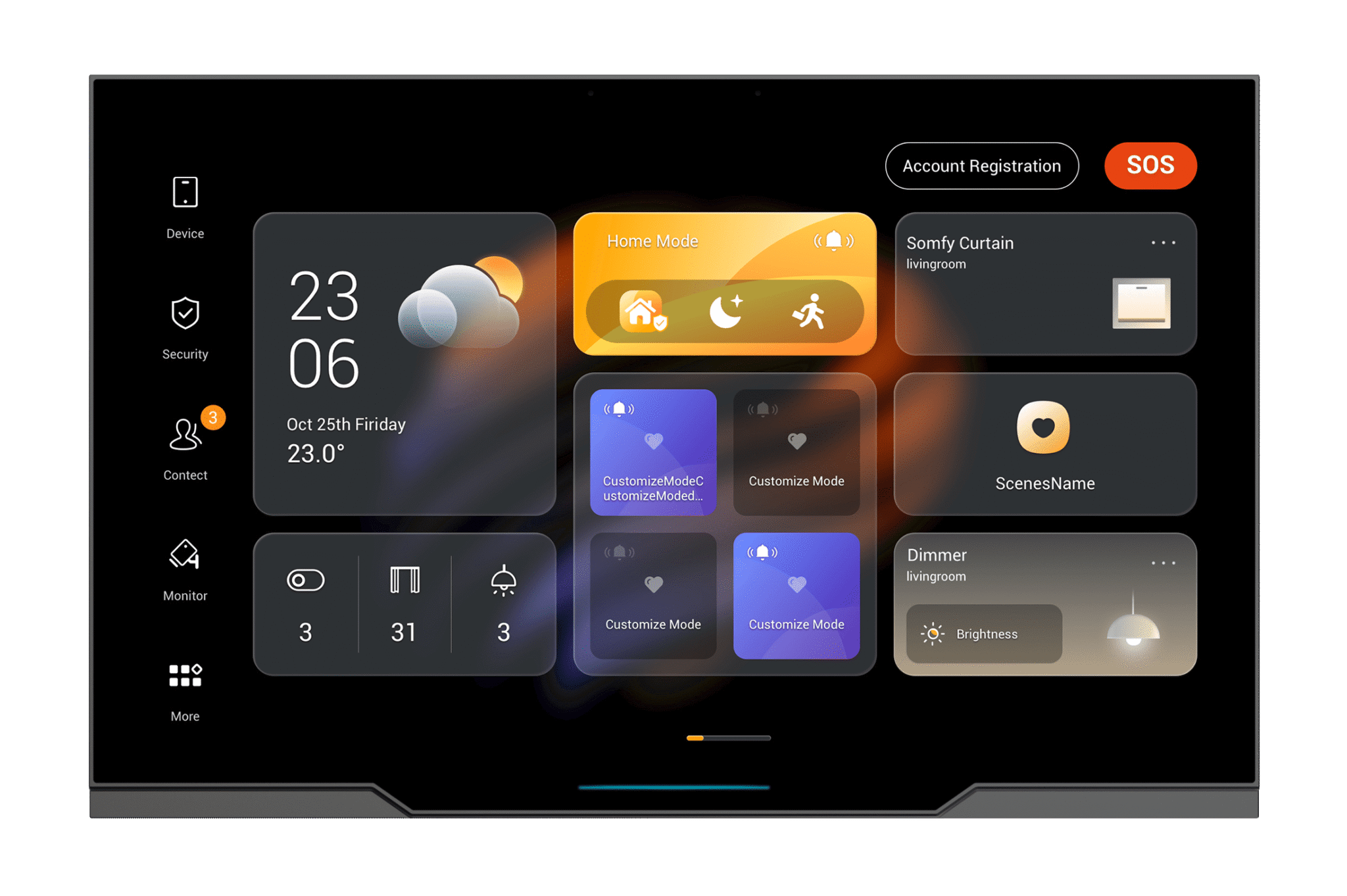

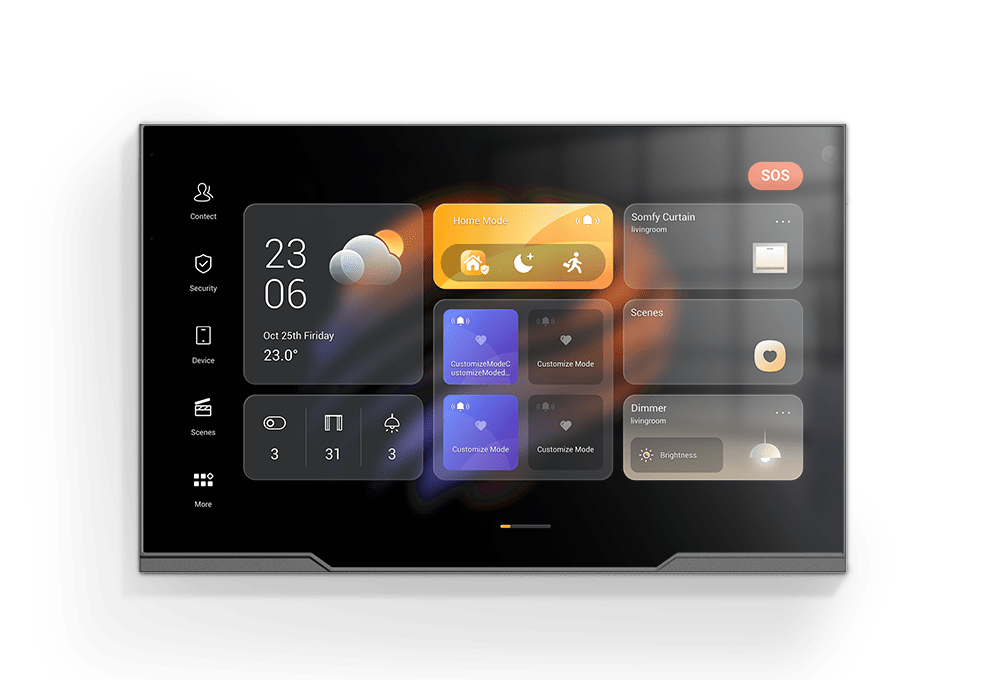

Akubela HyPanel Ultra PH81-ST – Integrated solution for intercom systems

Akubela HyPanel Ultra PH81-ST is a high-tech 10.36″ 2K (2000×1200) touchscreen smart control panel that runs on Android 12 and delivers smooth performance thanks to a quad-core processor, 4 GB of RAM, and 32 GB of internal memory. It features advanced wireless integration (Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0, Ethernet), and a range of built-in inputs and outputs for intelligent control. Plus, it has sensors for light, proximity, heat, and humidity, all in a sleek metal frame

Hurry up to order the product and get a discount of up to 30%

Sale_coupon_15

Categories: , Brand:
886 People watching this product now!
  • Pick up from Saudi AV Tech warehouses

Same day delivery

Free

  • Express delivery

Products will be delivered to the location specified by the customer.

3 working days

Free

  • Express delivery by DHL

DHL delivers the products to the specified location.

3 working days

My trials

  • 2-year warranty

More details

  • Return within 30 days

More details

Payment Methods:

Product Description

Akubela HyPanel Ultra PH81-ST is an advanced intelligent control panel and integrated solution for home automation and intercom system management. The device comes with a large 10.36-inch touchscreen with a resolution of 2000×1200 pixels (2K UHD) with a sleek and thin metal frame that reflects the modern and durable design.

The device runs on Android 12 and offers high performance thanks to a powerful processor, 4GB of RAM, and 32GB of internal storage, allowing for smooth operation of home automation applications and advanced integration with third-party systems.

The PH81-ST supports a multi-network network that includes dual-band Wi-Fi 6 (2.4 and 5 GHz), Bluetooth 5.0, and ZigBee 3.0, providing extensive integration with various smart devices and sensors. It also has an RJ45 Ethernet port with 10/100 Mbps speeds, and an RS485 port for industrial and auxiliary connections.

The device is integrated with several advanced sensors including Proximity, Light, Temperature, and Humidity sensors, enhancing data collection capabilities and advanced analysis of the smart home environment.

The device has wide support for digital inputs (8 inputs 0-5V DC) and relay outputs (6 ports Dry Contacts) with different voltage ratings that allow the connection of lighting, heating, and security systems with high efficiency.

The device also provides video intercom thanks to a 5MP camera integrated with a privacy shutter that ensures the user’s safety and privacy while not in use. The device features two high-quality speakers and two microphones to ensure sound quality during calls or alerts.

Main Technical Specifications

EU

SpecificationDetails
Display10.36 inches, 2000×1200p touchscreen, metal bezel
Operating systemAndroid 12
Processor and memoryQuad-core processor, 4GB RAM, 32GB ROM
Networking ConnectivityWi-Fi 6 (2.4/5 GHz), Bluetooth 5.0, ZigBee 3.0, RJ45 Ethernet 10/100Mbps, RS485
SensorsProximity, low light, temperature, humidity
Inputs and Outputs8 digital inputs (0-5V DC), 6 relay outputs (Dry Contacts)
Camera5 MP, Privacy Shutter
SoundTwo microphones, 4Ω/2W
Energy12-24V DC
Dimensions Weight245 × 156 × 10 mm, weight 1.52 kg
Installation/UK/US Integrated Flush Mount

Akubela HyPanel Ultra (PH81-ST) – Integrated Smart Home Control Center



-High-end screen and perfect interactive experience

10.36-inch 2K (2000×1200) touchscreen and 350–360 nits brightness inside a slim, modern metal bezel that brings elegance and professionalism to any location.

-Powerful processor and fast performance and powered by Android 12

Equipped with 4 GB RAM and 32 GB ROM, it ensures smooth multitasking, instant control, and easy and quick installation of third-party apps.

– Comprehensive and advanced communication networks

Supports connectivity via:

  • Wi-Fi 6 (2.4 GHz/5 GHz)
  • Bluetooth 5.0
  • ZigBee 3.0 to create a wide network for automation

Ethernet RJ45 (10/100 Mbps) for maximum reliability

-Various inputs and outputs for controlling devices

Include:

  • 8 digital inputs (0-5 VDC)
  • 4 dry relay outputs (3 A at 100-240 VAC)
  • 2 dry relay outputs (2 A at 0-30 VDC)
  • RS485 port for integration with smart building systems

-Integrated sensor array for intelligent interaction

Smart sensors include:

  • Proximity (30–60 cm)
  • Lighting.
  • Heat.
  • Humidity.

-Built-in intelligent add-ons

Works as:

  • Integrated smart control panel inside the home
  • ZigBee Home Automation Portal
  • Integrated Alarm/Intercom Module
  • It also supports streaming family photos, security cameras, or intercom from the door of the house

Why Choose Akubela HyPanel Ultra (PH81-ST)?

interfaceMemoryNetworksmetal design

FeatureInterest
2K display and richSuperior viewing and performance experience
Android 12 with StrongFree customization and speed in commands
IntegratedWide wireless control and multi-way connectivity
Smart SensorsSeamless and automatic environmental interaction
SleekHarmonizes with luxury home décor
Extensive integration with devices and platformsStability and resilience for the future

Specifications

Overview

ModelPH81-ST
ManufacturerAkubela
System OSAndroid 12
Display10.36 inch, 2000×1200p touch screen
RAM/ROM4GB/32GB
Connection ProtocolWi-Fi, ZigBee 3.0
Operating Voltage
Dimensions

Processor

ModelPH81-ST
ManufacturerAkubela
System OSAndroid 12
Display10.36 inch, 2000×1200p touch screen
RAM/ROM4GB/32GB
Connection ProtocolWi-Fi, ZigBee 3.0
Operating Voltage
Dimensions
