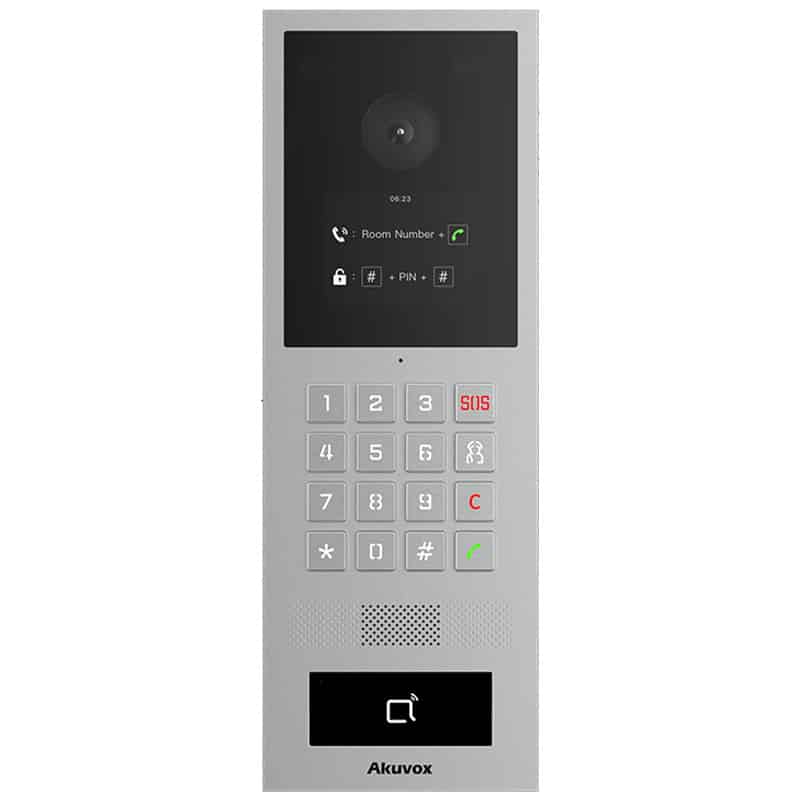

Akuvox S532 is a vandal and water-resistant smart door phone with a 2MP camera, 2.8-inch display, multiple access methods such as RFID, NFC, Bluetooth, and SIP

Akuvox S532 is a smart doorphone that combines IP and analog technologies, designed to update older intercom systems without extensive rewiring seamlessly.

The S532 features a durable body that is resistant to vandalism and damage with IK08 standard and IP66 water and dust resistance, making it suitable for use in public and safe places, and the device has a 2.8-inch color display and a digital button with additional buttons, equipped with a 2MP HD camera with a wide viewing angle (130° horizontal and 90° vertical) with support for auto lighting and infrared for night vision.

Akuvox S532 supports multiple access methods such as PIN codes, 13.56MHz and 125kHz RFID tags, NFC, and Bluetooth to provide high flexibility in access control.

Akuvox S532 includes features such as high-resolution motion detection, echo cancellation, support for SIP and ONVIF protocols, support for Wiegand and RS485 ports, and visual and audio indicators. The device operates in a wide temperature range from -40°C to +60°C, with PoE support for easy installation.

Key Specifications and Features of Akuvox S532

• Durable, vandal-resistant and IP66-resistant aluminium alloy front body.
• Approx. 2 MP camera with wide viewing angle (130° horizontal / 90° vertical) enables effective coverage of the entry area.
• Akuvox S532 comes with a 2.8-inch display to show unit or caller information.
• Built-in keypad with additional buttons, allowing you to enter PINs or select a specific unit or office.
• Smart card reader supports 13.56 MHz and 125 kHz frequencies, as well as NFC and Bluetooth BLE, providing multiple access options.
• Feed over PoE+ (IEEE 802.3at) or 12 V DC feed, making it easy to install the module in new installations or as an alternative for refurbishment.
• Akuvox S532 supports voice and video network protocols such as SIP v1/v2 (RFC2543/3261) and ONVIF, for easy integration with PBX or video surveillance systems.
• Versatile Inlet/Outlets: Wiegand Port, RS-485, 2 Relay Outputs for Lock or Door Control, Additional Inputs, Expandable and Controllable.
• Operating temperature range from -40°C to +60°C, making it suitable for use in areas with extreme weather conditions.

Why Choose Akuvox S532

• Combine high-quality video + intelligent access control + resistive design into a single unit, reducing the need for separate devices and facilitating access management and monitoring.
• The professional design of the Akuvox S532 is weather and vandal resistant, suitable for new buildings or renovations that require an advanced access unit.
• Multiple access options (card, PIN, NFC, Bluetooth) enhancing security and flexibility of use.
• Easy installation either as part of a modern system or as a complement to an existing analog system — the S532 supports the transition from legacy to modern systems with ease.

Ideal Phone Uses

• Entrances to gates, residential or commercial buildings need a video and audio entry unit with multimedia access control.
• Modernization of traditional access systems to modern IP systems, without changing all the wires.
• Outdoor locations are exposed to the elements and require a device with high specifications of durability and reliability.
• Buildings with multiple units/apartments or offices that need a smart and modern entrance interface.
