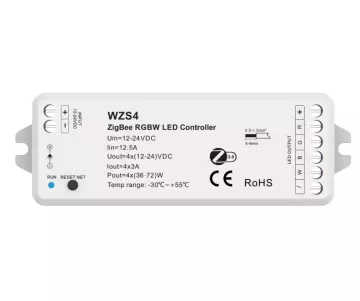

Akubela ZigBee WZS4 – RGBW LED Controller with ZigBee connectivity

TypeVoltageCurrentVoltageCurrentCapacityProtocolTemperature°C

Specification	Details
Model	WZS4
Lighting	RGBW LED strips
Number of Channels	4
Input	12 – 24V DC
Input	12.5 A
Output	12 – 24V DC
Output	3 amps per channel
Output	36 – 72 watts per channel
Dimming technology	PWM 2 kHz, 65536 dimming level
Communication	ZigBee 3.0
Operating	-30 to 55
Protection Level	IP20
Dimensions of the device	114 × 38 × 20 mm
Certificates	CE, EMC, RED

Functions and Features
Support independent channel on/off (RGB+White) enabling color blending or pure white use.
Dynamic control of brightness and colors via the app or the HyPanel control panel for central control.
Ability to control lighting scenes and quickly change atmosphere.
Flicker-free response thanks to the right PWM frequency.
Compact design fits behind strips or inside junction boxes, as well as direct DC power input.

Advantages that distinguish it from others
It combines color (RGB) with white, giving greater flexibility in use: decoration + practical lighting.
Consistent performance without flicker or blur at low brightness thanks to high-quality PWM.
Reliable in wireless connectivity through ZigBee 3.0 with mesh network support for better coverage.
Integrated centralized control with Akubela system: HyPanel + BelaHome makes management easy and consistent.
Good load capacity fits medium length LED strips or multiple light points.
